Product Overview

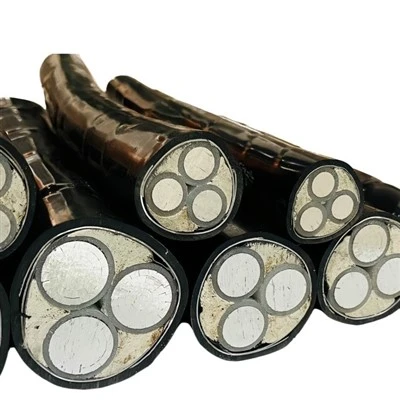

YJLHV22 yog ib qho yooj yim heev, ob chav steel daim kab xev armored fais fab cable nrog PVC txheej sheath thiab 90℃cross-linked polyethylene waterproof rwb thaiv tsev, muaj nyob rau hauv ib tug -core los yog multi-core specifications. Nws yog Class B nplaim hluav taws xob- retardant cable nruab nrog ib qho kev xaiv liab qab tus neeg xyuas pib rau equipotential bonding, thiab tsim los ua ib tug txhim khu kev qha Dual Isolation Cable rau ntau yam kev lag luam thiab kev tsim kho scenarios.
Featuring FT4- ntsuas PVC txheej txheej, qhov premiumHigh Voltage Armor Cable tso cai rau faus ncaj qha tso thiab ua haujlwm ruaj khov nyob rau hauv ib puag ncig corrosive thiab cov tsev tsis muaj hluav taws xob. Nws ua haujlwm zoo nyob rau hauv ntau qhov kub ntawm -40℃~ 90 degree, nrog kev sib nqus hluav taws xob siab, kev yaig tsis kam thiab av noo, zoo haum rau kev lag luam, hauv av, chaw nres tsheb fais fab, kev tsheb ciav hlau thiab kev siv hauv tsev.
Raws li tus qauv 4 Cores Aluminium Cable (txhawb cov ntsiab lus tshwj xeeb xws li 1/2/3/4/3+1 thiab ntau dua), nws yog ua ntej - sib dhos ntawm lub Hoobkas nrog siab - yoog tus kheej - xauv aluminium armor thiab kaw PVC txheej txheej. Qhov kev tshaj lij Dual Isolation Cable no zoo heev txo cov teeb meem kev tsim kho thiab cov nqi ua haujlwm los ntawm cov yeeb nkab ib txwm siv, tsis tas yuav muaj cov kav dej ntxiv, cov khoom siv lossis kev ua haujlwm- cov txheej txheem hnyav xws li rub cov hlau, threading thiab cov yeeb nkab sib sau. Nws kuj yog tus nqi -hnyav High Voltage Armor Cable nrog lub neej ua haujlwm ntev, thiab lub zog 4 Cores Aluminium Cable ua tau raws li qhov loj -tam sim no lub zog xa hluav taws xob xav tau ntawm ntau yam hnyav - cov haujlwm ua haujlwm.
|
No. of Cores thiab Nominal Cross Section |
Thickness ntawm rwb thaiv tsev |
Thickness ntawm steel daim kab xev |
Thickness ntawm Sheath |
Kwv yees li. Zuag qhia tag nrho |
Kwv yees li. Qhov hnyav |
Max. DC Resistance ntawm Conductor (20ºC) |
|
(mm2) |
(mm) |
(mm) |
(mm) |
(mm) |
(kg/km) |
(Ω/km) |
|
3×4+1×2.5 |
0.7/0.7 |
0.2 |
1.8 |
15.5 |
318 |
7.41/12.1 |
|
3×6+1×4 |
0.7/0.7 |
0.2 |
1.8 |
16.8 |
371 |
4.61/7.41 |
|
3×10+1×6 |
0.7/0.7 |
0.2 |
1.8 |
19.3 |
478 |
3.08/4.61 |
|
3×16+1×10 |
0.7/0.7 |
0.2 |
1.8 |
22.1 |
615 |
1.91/3.08 |
|
3×25+1×16 |
0.9/0.7 |
0.2 |
1.8 |
25.1 |
794 |
1.20/1.91 |
|
3×35+1×16 |
0.9/0.7 |
0.2 |
1.8 |
26.8 |
926 |
0.868/1.91 |
|
3×50+1×25 |
1.0/0.9 |
0.2 |
1.9 |
30.2 |
1175 |
0.641/1.20 |
|
3×70+1×35 |
1.1/0.9 |
0.2 |
2.0 |
35.1 |
1570 |
0.443/0.868 |
|
3×95+1×50 |
1.1/1.0 |
0.5 |
2.2 |
40.4 |
2359 |
0.320/0.641 |
|
3×120+1×70 |
12./1.1 |
0.5 |
2.3 |
45 |
2886 |
0.253/0.443 |
|
3×150+1×70 |
1.4/1.1 |
0.5 |
2.5 |
49.1 |
3396 |
0.206/0.443 |
|
3×185+1×95 |
1.6/1.1 |
0.5 |
2.8 |
54.3 |
4070 |
0.164/0.320 |
|
3×240+1×120 |
1.7/1.2 |
0.5 |
2.8 |
59.1 |
4855 |
0.125/0.253 |
|
3×300+1×150 |
1.8/1.4 |
0.5 |
3.0 |
66.0 |
6028 |
0.100/0.206 |
Core Technical Parameters
|
Yam khoom Parameter |
Specification |
Yam khoom Parameter |
Specification |
|
Qauv nab npawb |
YJLHV |
Rated Voltage |
0.6 / 1KV (L / M / H Voltage Muaj) |
|
Cov khoom siv coj ua |
Aluminium Alloy |
Cov khoom siv rwb thaiv tsev |
XLPE + PVC (Dual Isolation) |
|
Txheem Loj |
4 * 240 hli |
Hla Tshooj Ntau |
1.5mm²-1000mm² (Customizable) |
|
Ua haujlwm kub |
-40℃~ 90 degree |
Armored Hom |
Ob chav Steel daim kab xev Armor |
|
Jacket Khoom |
PVC |
Yam tsawg kawg Bending Radius |
7D |
|
Core Specification |
1/2/3/4/3+1/5/3+2/4+1 |
Xim |
Dub (kho tau) |
|
Ntsiab nta |
High Magnetic Conductivity, Erosion Resistance, Humidity Resistance |
MOQ |
100 Meter |
|
Daim ntawv pov thawj |
CCC/ISO/CE |
Qhov Chaw Keeb Kwm |
Hebei, Suav |
|
Daim ntawv thov |
Industrial, Underground, Chaw nres tsheb fais fab, Railway, Tsev |
Hom kab |
Aluminium Core Armored Fais Fab Cable |
Khoom nta & Core Advantages
Dual Isolation & Waterproof nplaim taws -Retardant Performance
Raws li ib tug kws tshaj lij Dual Isolation Cable, nws txais yuav 90℃cross-txuas polyethylene waterproof rwb thaiv tsev ntxiv rau FT4-rated PVC txheej sheath dual qauv, nrog zoo heev rwb thaiv tsev, waterproof thiab Class B nplaim hluav taws- retardant zog, tsis muaj tshuaj lom tso tawm thaum lub sij hawm combustion, tag nrho raws li non-combustible℃nyob rau hauv high℃ntawm kev nyab xeeb 9.
High Voltage Armor & Direct Burial Adaptability
Premium High Voltage Armor Cable nrog ob chav steel daim kab xev rau tus kheej- xauv siab- cov cuab yeej yooj yim, Hoobkas ua ntej- sib dhos thiab kaw tag nrho, muaj zog tiv thaiv thiab corrosion kuj, tshwj xeeb tshaj yog tsim los rau faus ncaj qha nteg, zoo kawg nkaus haum rau hnyav corrosive ib puag ncig thiab hnyav - lub luag haujlwm engineering.
4 Cores Aluminium Conductor & Flexible Design
Standard 4 Cores Aluminium Cable ua los ntawm siab- zoo aluminium alloy, nrog high magnetic conductivity, ruaj khov conductivity thiab tsis muaj zog poob, txuam 4 * 240mm² loj ntoo khaub lig-section rau npaum loj- tam sim no kis tau tus mob; nruab nrog ib qho kev xaiv liab qab tus neeg xyuas pib rau equipotential bonding, siab flexibility ua kom yooj yim ntawm - qhov chaw tsim kho.
Kev Ua Haujlwm-Txuag & Nqis-Txo Kev Tsim Kho
Factory integrated pre-kev tsim qauv tshem tawm cov kav dej ntxiv, cov khoom siv ntxiv thiab cov txheej txheem nyuaj xws li rub tawm, xov thiab cov yeeb nkab sib sau, ncaj qha txiav kev tsim kho nyuaj thiab cov nqi zog ntawm cov yeeb nkab thaiv, zoo heev txhim kho kev tsim kho thiab txo tus nqi tag nrho.
Daim ntawv thov dav & ua tiav daim ntawv pov thawj
Yam tsawg kawg yog dabtsi yog khoov vojvoog 7D, muaj zog yooj rau qhov chaw nqaim thiab txoj kev nyuaj; erosion thiab humidity resistant rau ntev - siv nyob rau hauv underground thiab corrosive ib puag ncig; ua tiav CCC/ISO/CE daim ntawv pov thawj, customizable cross -section thiab core number, haum rau ntiaj teb no engineering tej yaam num.
