Khoom Taw Qhia

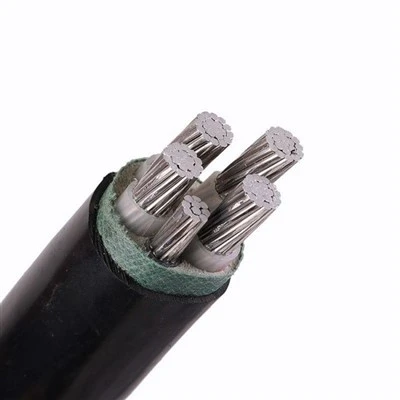

YJLV MC/SWA Hom Ib Lub Zog Hluav Taws Xob Hnub Ci Hluav Taws Xob Hluav Taws Xob Hluav Taws Xob Hluav Taws Xob Hluav Taws Xob Hluav Taws Xob Hluav Taws Xob Hluav Taws Xob Hluav Taws Xob Hluav Taws Xob Hluav Taws Xob Hluav Taws Xob Hluav Taws Xob Hluav Taws Xob Hluav Taws Xob Hluav Taws Xob Hluav Taws Xob Hluav Taws Xob Hluav Taws Xob Hluav Taws Xob Hluav Taws Xob Hluav Taws Xob Hluav Taws Xob Hluav Taws Xob Hluav Taws Xob Hluav Taws Xob Hluav Taws Xob Hluav Taws Xob Hluav Taws Xob Hluav Taws Xob Hluav Taws Xob Hluav Taws Xob Hluav Taws Xob Hluav Taws Xob Hluav Taws Xob Hluav Taws Xob Hluav Taws Xob Hluav Taws Xob Hluav Taws Xob Featuring ib tug tshwj xeeb Subterranean Core tsim, nws yog engineered kom xa cov kev ruaj khov nyob rau hauv hnyav underground ib puag ncig, zoo tiv thaiv av corrosion thiab lwm yam mechanical kev nyuaj siab. Nruab nrog siab - zoo pvc steel hlau armor, lub cable no txhim kho kev tiv thaiv kev tiv thaiv, ua kom ntev - lub sijhawm ua haujlwm nyab xeeb txawm tias nyob rau hauv kev tsim kho thiab hnub ci zog. Nrog txhuas core ua tus neeg xyuas pib thiab XLPE rwb thaiv tsev, nws ua tau raws li cov qauv kev lag luam thoob ntiaj teb, ua rau nws muaj kev ntseeg siab rau cov neeg yuav khoom thoob ntiaj teb nrhiav kev daws teeb meem hauv av hauv av.
Cov ntsiab lus technical
|
Parameter |
Specification |
Parameter |
Specification |
|
Qauv |
YJLV |
Rated Voltage |
8.7kV, 10kV, 15kV, 20kV, 26kV, 35kV |
|
Cov khoom siv coj ua |
Aluminium |
Cov khoom siv rwb thaiv tsev |
XLPE |
|
Jacket Khoom |
PVC |
Armor Hom |
Steel daim kab xev Armored |
|
Ua haujlwm kub |
90 degree |
Xim |
Dub (Kho kom raug Spelling) |
|
Hla ntu |
Customizable |
Number of Cores |
Customizable (Tib Core Default) |
|
Hom hluav taws xob |
LV/MV/HV |
Yam tsawg kawg nkaus Order Quantity |
100 Meter |
|
Cov ntawv pov thawj |
ISO, CCC |
Kev Pabcuam Kev Cai |
OEM & ODM Txhawb nqa |
|
Keeb kwm |
Hebei, Suav |
Cov ntawv thov tseem ceeb |
Underground Laying, Hnub Ci PV, Chaw nres tsheb fais fab, Fais fab kev faib, Kev tsim kho |
Nta
Kev khiav hauj lwm kub yog qhov siab tshaj plaws ntsuas kub ntawm tus neeg xyuas pib, uas yog 90 degree; Qhov kub siab tshaj plaws thaum lub sijhawm luv luv yuav tsum tsis pub tshaj 250 degree, thiab lub sijhawm yuav tsum tsis pub tshaj 5 vib nas this; installation thiab nteg kub yog qhov tsawg kawg nkaus kub rau cable installation thiab nteg, uas tsis tsawg tshaj li 0 degree; rau huab cua- cov kab hluav taws xob tso, qhov ntsuas kub yog 40 degree; rau cov av- cov cables, qhov kub thiab txias yog 25℃.
|
Ib leeg -core aluminium core xlpe insulated PVC sheathed cable specifications thiab tsis |
|||||
|
Nominal cross-sectional cheeb tsam |
rwb thaiv tsev thickness |
Sheath thickness |
Kwv yees |
Kwv yees li. hnyav |
Qhov siab tshaj plaws DC tsis kam ntawm tus neeg xyuas pib ntawm 20 degree |
|
mm2 ua |
mm |
mm |
mm |
kg/km |
Ω/km |
|
1x1.5 |
0.7 |
1.4 |
6 |
||
|
1x2.5 |
0.7 |
1.4 |
6 |
41 |
12.1 |
|
1x4 |
0.7 |
1.4 |
7 |
49 |
7.41 |
|
1x6 |
0.7 |
1.4 |
7 |
59 |
4.61 |
|
1x10 |
0.7 |
1.4 |
8 |
80 |
3.08 |
|
1x16 |
0.7 |
1.4 |
9 |
105 |
1.91 |
|
1x25 |
0.9 |
1.4 |
11 |
147 |
1.20 |
|
1x35 |
0.9 |
1.4 |
12 |
184 |
0.868 |
|
1x50 |
1.0 |
1.4 |
13 |
236 |
0.641 |
|
1x70 |
1.1 |
1.4 |
15 |
314 |
0.443 |
|
1x95 |
1.1 |
1.5 |
17 |
406 |
0.320 |
|
1x120 |
1.2 |
1.5 |
19 |
496 |
0.253 |
|
1x150 |
1.4 |
1.6 |
21 |
609 |
0.206 |
|
1x185 |
1.6 |
1.6 |
23 |
747 |
0.164 |
|
1×240 |
1.7 |
1.7 |
26 |
951 |
0.125 |
|
1×300 |
1.8 |
1.8 |
28 |
1162 |
0.100 |
|
1×400 |
2.0 |
1.9 |
32 |
1477 |
0.0778 |
|
1×500 |
2.2 |
2.0 |
35 |
1856 |
0.0605 |
|
1×630 |
2.4 |
2.2 |
40 |
2351 |
0.0469 |
|
1×800 |
2.6 |
2.3 |
44 |
||
Qhov Zoo Tshaj Plaws & Daim Ntawv Thov Teb
Subterranean Core tsim ntawm no cable yog tshwj xeeb optimized rau underground nteg, ua kom nws hloov mus rau ntau yam av tej yam kev mob thiab tiv taus ya raws, corrosion, thiab sab nraud siab. Kev sib xyaw ua ke ntawm pvc steel hlau armor muab cov cuab yeej tshwj xeeb, tiv thaiv kev puas tsuaj los ntawm kev siv tshuab, pob zeb cuam tshuam, thiab lwm yam sab nraud thaum lub sijhawm teeb tsa thiab ua haujlwm. Nrog XLPE rwb thaiv tsev thiab PVC tsho, lub cable muaj superior dielectric kev ua tau zoo thiab hnav tsis kam, ua kom ruaj khov hluav taws xob xa mus rau lub hnub ci PV systems, chaw nres tsheb fais fab, thiab kev tsim kho.
Raws li ntau yam fais fab cable, nws txhawb customizable cross seem thiab cov tub ntxhais kom muaj nuj nqis (nrog ib tug tub ntxhais raws li lub neej ntawd), zoo kawg nkaus sib txawv cov kev xav tau ntawm txawv voltage theem (LV/MV/HV). Lub Subterranean Core thiab pvc steel hlau ua ke ua rau nws zoo tagnrho rau kev tso hauv av, hnub ci PV tsim hluav taws xob, kev faib hluav taws xob, thiab chaw tsim kho. Rov qab los ntawm OEM & ODM cov kev pabcuam thiab 100- meter MOQ, nws muab cov kev xaiv yuav khoom yooj yim rau cov neeg yuav khoom thoob ntiaj teb, txawm tias me me -batch sim lossis cov ntawv thov loj.
